BF12509 Series Connector

Specifications

• Poles:2to 30
• Current rating:1.0A AC/DC
• Voltage rating:125VAC/DC
• Temperature range:-25C to+85C
• Contact resistance: <30mΩ
• Insulation resistance: >100MQ
• Withstand voltage:250V AC/minute
• Applicable wire:AWG#32to#28
• Material:
• Housing:Nylon66 UL94V-0
• Terminal: Phos.Bronze Tin-Plated

BF 12509-T(A1253HA)

Part No.	Wire Range	Insulation O.D	Materia	Finish
BF 12509-T	AWG#32-#28	0.80mm(max)	Phosphor bronze	Tin-plated

BF 12509-A

BF 12509-Y(A1253HA)

HOUSING

Poles	Part No	Dimensions   mm
		A	B	C
2	BF12509-2Y	1.25	4.40	2.75
3	BF12509-3Y	2.50	5.65	4.00
4	BF12509-4Y	3.75	6.90	5.25
5	BF12509-5Y	5.00	8.15	6.50
6	BF12509-6Y	6.25	9.40	7.75
7	BF12509-7Y	7.50	10.65	9.00
8	BF12509-8Y	8.75	11.90	10.25
9	BF12509-9Y	10.00	13.15	11.50
10	BF12509-10Y	11.25	14.40	12.75
11	BF12509-11Y	12.50	15.65	14.00
12	BF12509-14Y	13.75	16.90	15.25
13	BF12509-13Y	15.00	18.15	16.50
14	BF12509-14Y	16.25	19.40	17.75
15	BF12509-15Y	17.50	20.65	19.00
20	BF12509-20Y	23.75	26.90	25.25
25	BF12509-25Y	30.00	33.15	31.50
30	BF12509-30Y	36.25	39.40	37.75

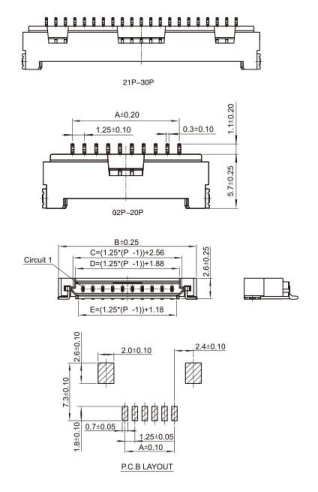

WAFER

Poles	Part No	Dimensions mm
		A	B
2	BF12509-2A	1.25	7.45
3	BF12509-3A	2.50	8.70
4	BF12509-4A	3.75	9.95
5	BF12509-5A	5.00	11.20
6	BF12509-6A	6.25	12.45
7	BF12509-7A	7.50	13.70
8	BF12509-8A	8.75	14.95
9	BF12509-9A	10.00	16.20
10	BF12509-10A	11.25	17.45
11	BF12509-11A	12.50	18.70
12	BF12509-14A	13.75	19.95
13	BF12509-13A	15.00	21.20
14	BF12509-14A	16.25	22.45
15	BF12509-15A	17.50	23.70
20	BF12509-20A	23.75	29.95
25	BF12509-25A	30.00	36.20
30	BF12509-30A	36.25	42.45
