Specifications
- Poles:2 to 15
- Current rating:1.0A AC/DC
- Voltage rating:50V AC/DC
- Temperature range:-25C to+85C
- Contact resistance: <20mΩ
- Insulation resistance: >500MΩ
- Withstand voltage:500V AC/minute
- Applicable wire:AWG#32 to #26
- Applicable PC board thickness:1.6mm
- Material:
- Housing:Nylon66UL94V-0
- Terminal:Phos.Bronze Tin-Plated
- Wafer:
- Pin:Brass Tin-Plated
- Base:Nylon 66 UL94V-0

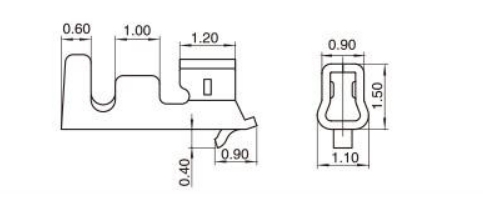

BF 15000-T
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| SH5000-T | AWG#32-#28 | 0.80mm(max) | Phosphor bronze | Tin-plated |
BF 15000-Y
BF 15000-A
BF 15000-AW

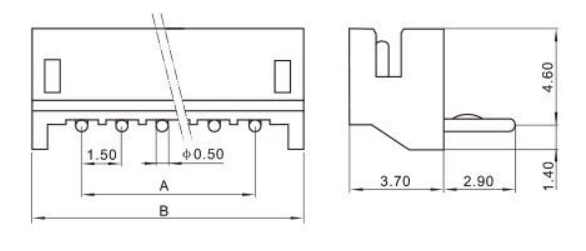

Installation Dimensions(90°)

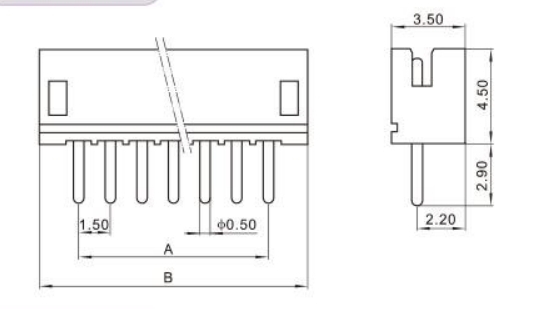

Installation Dimensions(180°)

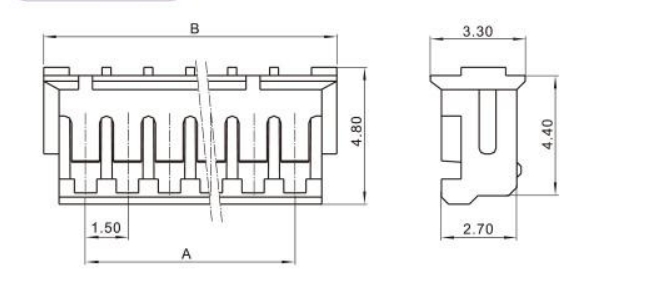

HOUSING
| Poles | Part No | SlonS | |
| A | B | ||
| 2 | BF15000-2Y | 1.5 | 4.5 |
| 3 | BF15000-3Y | 3 | 6 |
| 4 | BF15000-4Y | 4.5 | 7.5 |
| 5 | BF15000-5Y | 6 | 9 |
| 6 | BF15000-6Y | 7.5 | 10.5 |
| 7 | BF15000-7Y | 9 | 12 |
| 8 | BF15000-8Y | 10.5 | 13.5 |
| 9 | BF15000-9Y | 12 | 15 |
| 10 | BF15000-10Y | 13.5 | 16.5 |
| 11 | BF15000-11Y | 15 | 18 |
| 12 | BF15000-12Y | 16.5 | 19.5 |
| 13 | BF15000-13Y | 18 | 21 |
| 14 | BF15000-14Y | 19.5 | 22.5 |
| 15 | BF15000-15Y | 21 | 24 |
WAFER
| Poles | Part No | Dimensions mm | ||
| A | B | |||
| 2 | BF15000-2A | BF15000-2AW | 1.5 | 4.25 |
| 3 | BF15000-3A | BF15000-3AW | 3 | 5.5 |
| 4 | BF15000-4A | BF15000-4AW | 4.5 | 6.75 |
| 5 | BF15000-5A | BF15000-5AW | 6 | 8 |
| 6 | BF15000-6A | BF15000-6AW | 7.5 | 9.25 |
| 7 | BF15000-7A | BF15000-7AW | 9 | 10.5 |
| 8 | BF15000-8A | BF15000-8AW | 10.5 | 11.75 |
| 9 | BF15000-9A | BF15000-9AW | 12 | 13 |
| 10 | BF15000-10A | BF15000-10AW | 13.5 | 14.25 |
| 11 | BF15000-11A | BF15000-11AW | 15 | 15.5 |
| 12 | BF15000-12A | BF15000-12AW | 16.5 | 16.75 |
| 13 | BF15000-13A | BF15000-13AW | 18 | 18 |
| 14 | BF15000-14A | BF15000-14AW | 19.5 | 19.25 |
| 15 | BF15000-15A | BF15000-15AW | 21 | 20.5 |
