Specifications
- Current rating:4.0AAC/DC
- Voltage rating:350VAC/DC
- Temperature range:-25℃ to +85℃
- Contact resistance:<20mΩ
- Insulation resistance:≥1000MQ
- Withstand voltage:1700V AC/minute
- Applicable wires:AWG#32 to #28
- Housing:PA66 UL94V-0
- Terminal:Phos.Bronze Tin-Plated

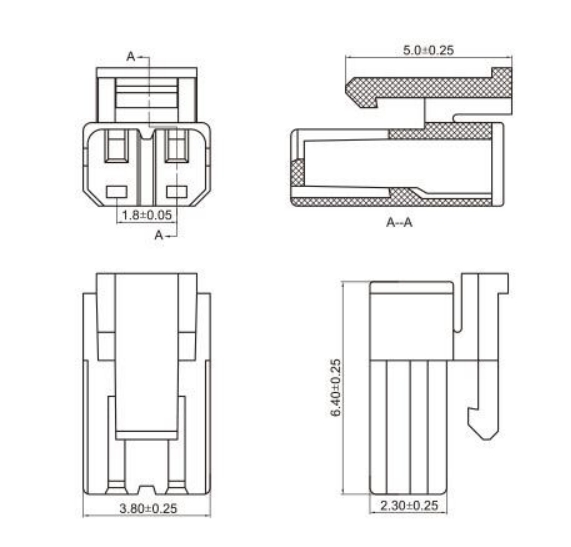

BF 18006-T
BF 15000-T
| Part No. | Wire Range | Insulation O.D | Materia | Finish |

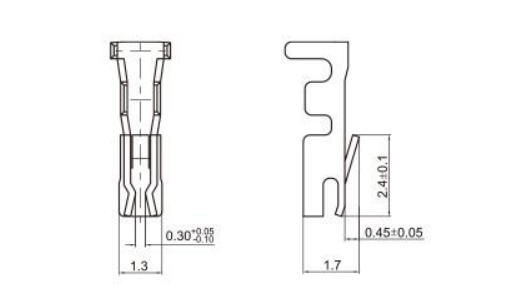

| BF18006-T | AWG #32-#28 | 0.80mm(max) | Phosphor bronze | Tin-plated |
BF 18006-Y
