Bf20001(PH) Series Connector

Specifications

• Poles:2 to16
• Current rating:2.0A AC/DC
• Voltage rating:100V AC/DC
• Temperature range:-25℃ to+85 ℃
• Contact resistance:   <20mΩ
• Insulation resistance:>1000MΩ
• Withstand voltage:800V AC/minute
• Applicable  wire:AWG#30to#24
• Applicable PC board thickness:1.6mm
• Material:
• Housing:Nylon66 UL94 V-0 or UL 94V-2
• Terminal:Phos.Bronze Tin-Plated
• Wafer:
• Pin: Brass Tin-Plated
• Base:Nylon 66 UL94 V-0 or UL94V-2

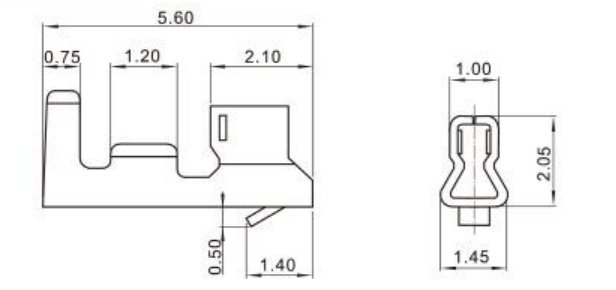

BF 20001-T

Part No.	Wire Range	Insulation O.D	Materia	Finish
BF20001-T	AWG#30-#24	0.80mm(max)	Phosphor bronze	Tin-plated

BF 20001-Y

BF 20001-A

BF 20001-AW

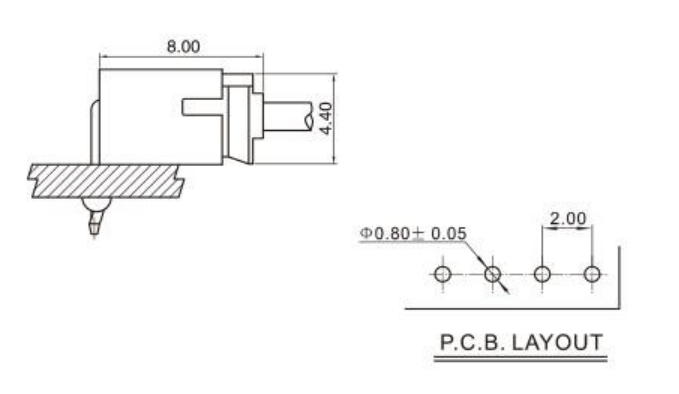

Installation Dimensions(180°)

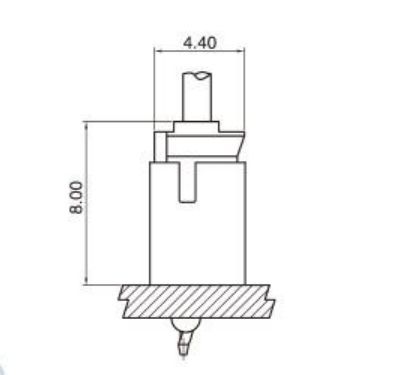

Installation Dimensions(90°)

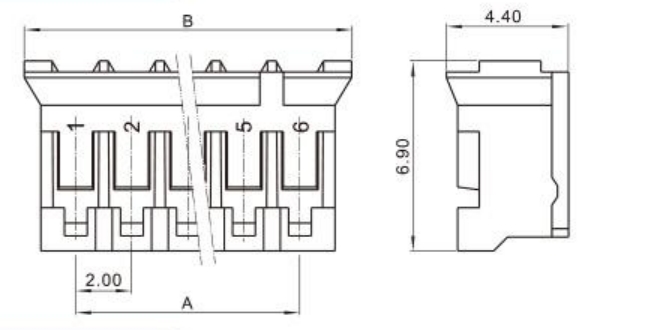

HOUSING

Poles	Part No.	Dimensions mm
		A	B
2	BF20001-2Y	2.00	5.70
3	BF20001-3Y	4.00	7.70
4	BF20001-4Y	6.00	9.70
5	BF20001-5Y	8.00	11.70
6	BF20001-6Y	10.00	13.70
7	BF20001-7Y	12.00	15.70
8	BF20001-8Y	14.00	17.70
9	BF20001-9Y	16.00	19.70
10	BF20001-10Y	18.00	21.70
11	BF20001-11Y	20.00	23.70
12	BF20001-12Y	22.00	25.70
13	BF20001-13Y	24.00	27.70
14	BF20001-14Y	26.00	29.70
15	BF20001-15Y	28.00	31.70
16	BF20001-16Y 30.0033.70

WAFER

Poles	Part No.		Dimensions mm
			A	B
2	BF20001-2A	BF20001-2AW	2.00	6.00
3	BF20001-3A	BF20001-3AW	4.00	8.00
4	BF20001-4A	BF20001-4AW	6.00	10.00
5	BF20001-5A	BF20001-5AW	8.00	12.00
6	BF20001-6A	BF20001-6AW	10.00	14.00
7	BF20001-7A	BF20001-7AW	12.00	16.00
8	BF20001-8A	BF20001-8AW	14.00	18.00
9	BF20001-9A	BF20001-9AW	16.00	20.00
10	BF20001-10A	BF20001-10AW	18.00	22.00
11	BF20001-11A	BF20001-11AW	20.00	24.00
12	BF20001-12A	BF20001-12AW	22.00	26.00
13	BF20001-13A	BF20001-13AW	24.00	28.00
14	BF20001-14A	BF20001-14AW	26.00	30.00
15	BF20001-15A	BF20001-15AW	28.00	32.00
16	BF20001-16A	BF20001-16AW	30.00	34.00
