Specifications
- Poles:2 to 15
- Current rating:2.0A AC/DC
- Voltage rating:250V AC/DC
- Temperature range:-25 ℃ to+85℃
- Contact resistance: <20mΩ
- Insulation resistance: >1000MΩ
- Withstand voltage:800V AC/minute
- Applicable wire:AWG#30 to #24
- Applicable PC board thickness:1.6mm
- Material:
- Housing:Nylon66 UL94 V-0
- Terminal:Phos.Bronze Tin-Plated

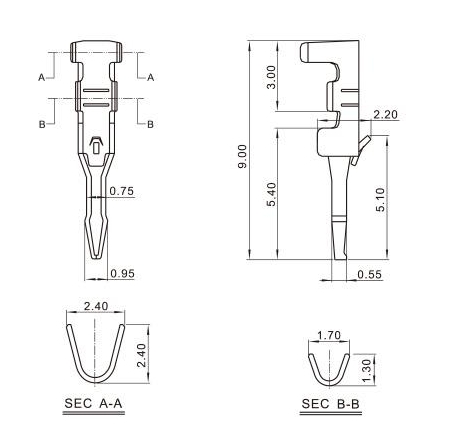

BF 20002-T
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| BF20002-T | AWG#30-#24 | 0.80mm(max) | Phosphor bronze | Tin-plated |

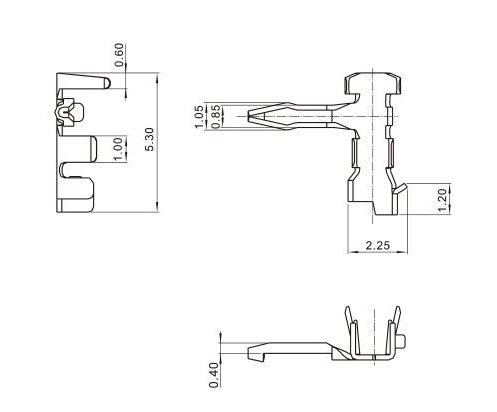

BF 20002-Y

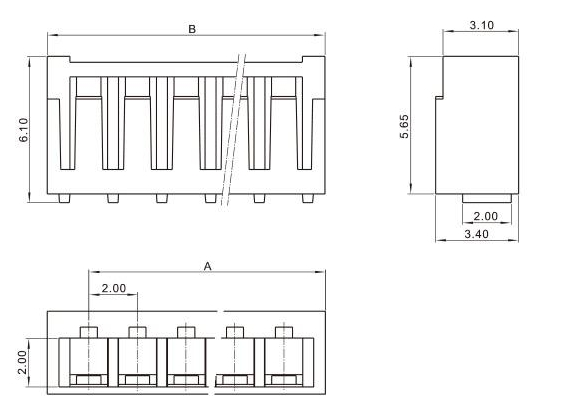

Installation Dimensions(180°)
HOUSING
| Poles | Part No | Dimensions mm | |
| A | B | ||
| 2 | BF20002-2Y | 2.00 | 5.60 |
| 3 | BF20002-3Y | 4.00 | 7.60 |
| 4 | BF20002-4Y | 6.00 | 9.60 |
| 5 | BF20002-5Y | 8.00 | 11.60 |
| 6 | BF20002-6Y | 10.00 | 13.60 |
| 7 | BF20002-7Y | 12.00 | 15.60 |
| 8 | BF20002-8Y | 14.00 | 17.60 |
| 9 | BF20002-9Y | 16.00 | 19.60 |
| 10 | BF20002-10Y | 18.00 | 21.60 |
| 11 | BF20002-11Y | 20 00 | 23.60 |
| 12 | BF20002-12Y | 22.00 | 25.60 |
| 13 | BF20002-13Y | 24.00 | 27.60 |
| 14 | BF20002-14Y | 26.00 | 29.60 |
| 15 | BF20002-15Y | 28.00 | 31.60 |
