Specifications
- Poles：2 to 16
- Current rating:2.0A AC/DC
- Voltage rating:250V AC/DC
- Temperature range:-25℃ to+ 85℃
- Contact resistance: <20mΩ
- Insulation resistance:>1000MΩ
- Withstand voltage:500V AC/minute
- Applicable wire: AWG#30 to #24
- Applicable PC board thickness: 1.6 mm
- Housing:Nylon66UL94V-0
- Terminal:Phos.Bronze Tin-Plated
- Pin: Brass Tin-Plated
- Base:Nylon 66 UL94V-0

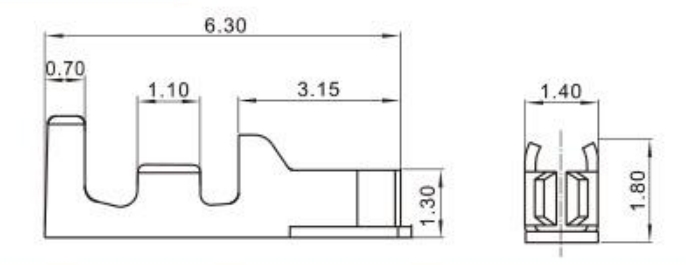

BF 20004-T
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| BF20004-T | AWG#30-#24 | 0.90mm(max) | Phosphor bronze | Tin-plated |
BF 20004-Y
BF 20004-A
BF 20004-AW

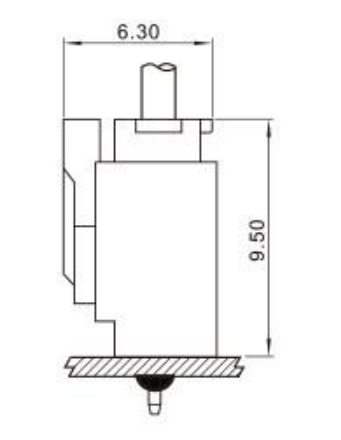

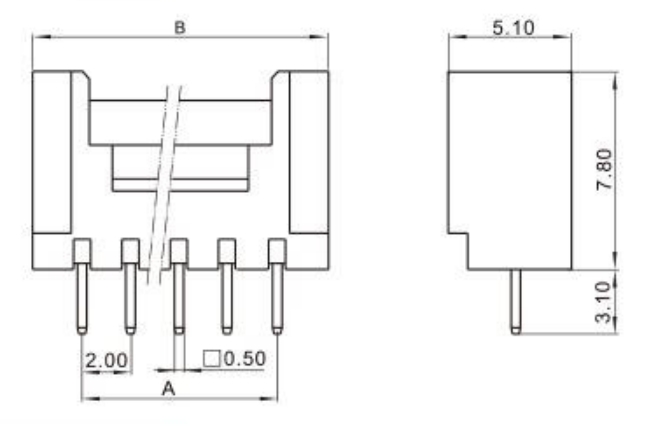

Installation Dimensions(180°)

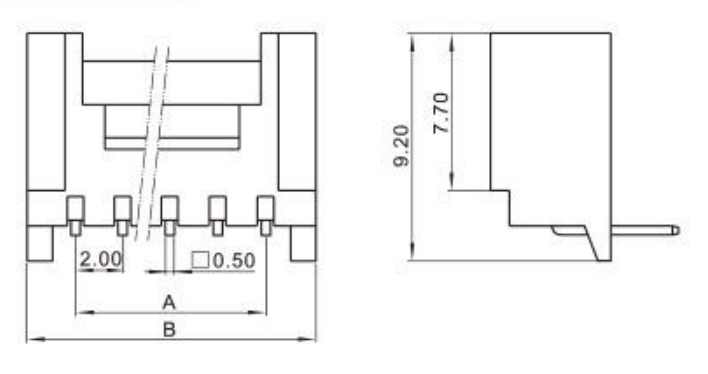

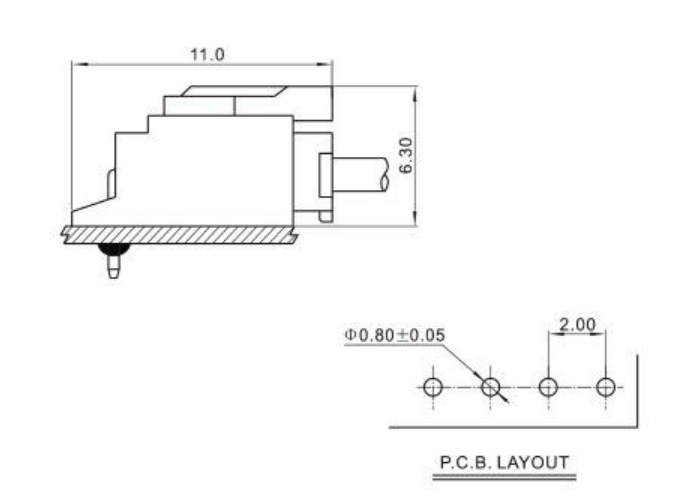

Installation Dimensions(90°)

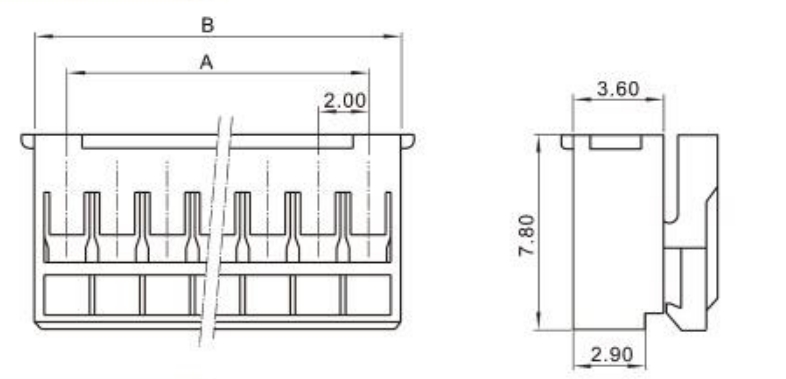

HOUSING
| Poles | Part No. | Dimensions mm | |
| A | B | ||
| 2 | BF20003-2Y | 2.00 | 4.60 |
| 3 | BF20003-3Y | 4.00 | 6.60 |
| 4 | BF20003-4Y | 6.00 | 8.60 |
| 5 | BF20003-5Y | 8.00 | 10.60 |
| 6 | BF20003-6Y | 10.00 | 12.60 |
| 7 | BF20003-7Y | 12.00 | 14.60 |
| 8 | BF20003-8Y | 14.00 | 16.60 |
| 9 | BF20003-9Y | 16.00 | 18.60 |
| 10 | BF20003-10Y | 18.00 | 20.60 |
| 11 | BF20003-11Y | 20.00 | 22.60 |
| 12 | BF20003-12Y | 22.00 | 24.60 |
| 13 | BF20003-13Y | 24.00 | 26.60 |
| 14 | BF20003-14Y | 26.00 | 28.60 |
| 15 | BF20003-15Y | 28.00 | 30.60 |
| 16 | BF20003-16Y | 30.00 | 32.60 |
