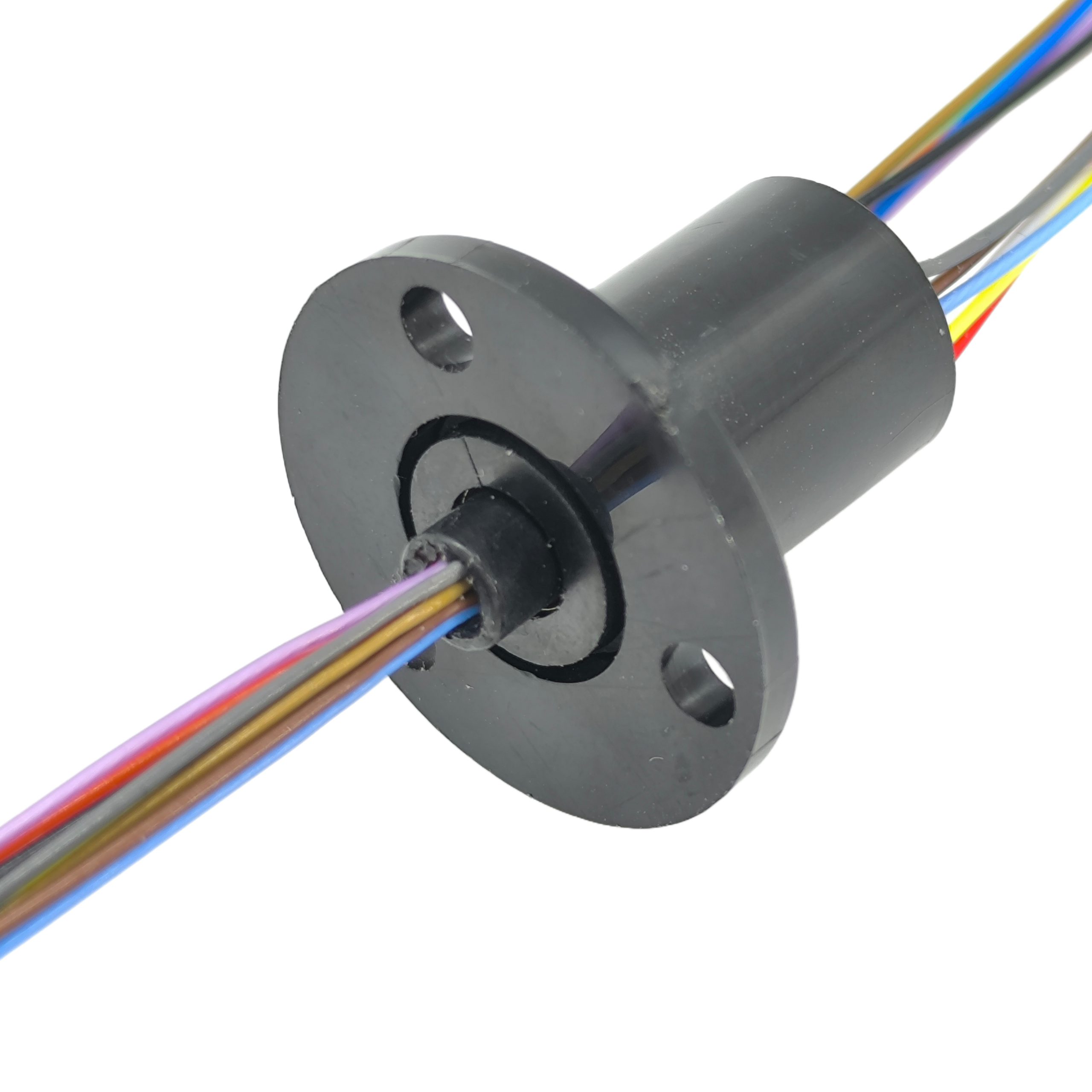

Hat-type conductive slip rings are a series of conductive slip rings with round flanges attached to the shell, cap-type slip rings look like a hat, compact design and easy to install.
The appearance of the cap type slip ring is like a hat, compact design, small volume, easy to install.
The product adopts the U.S. military surface treatment process, ultra-hard gold plating treatment, to ensure extremely low resistance wave and long working life.
The products adopt American military surface treatment technology and ultra-hard gold plating treatment to ensure extremely low resistance wave and long working life.
Mainly used for transmission of small and medium-sized systems, weak control signals, weak current.Such as video, control
Sensing, Power, Ethernet.
Low torque, low loss and maintenance free; low electrical noise.
Typical applications: drones, steadicam, smart home, security surveillance, camera, robotics, and other applications.
test equipment, rotary tables, and automation equipment.
Products

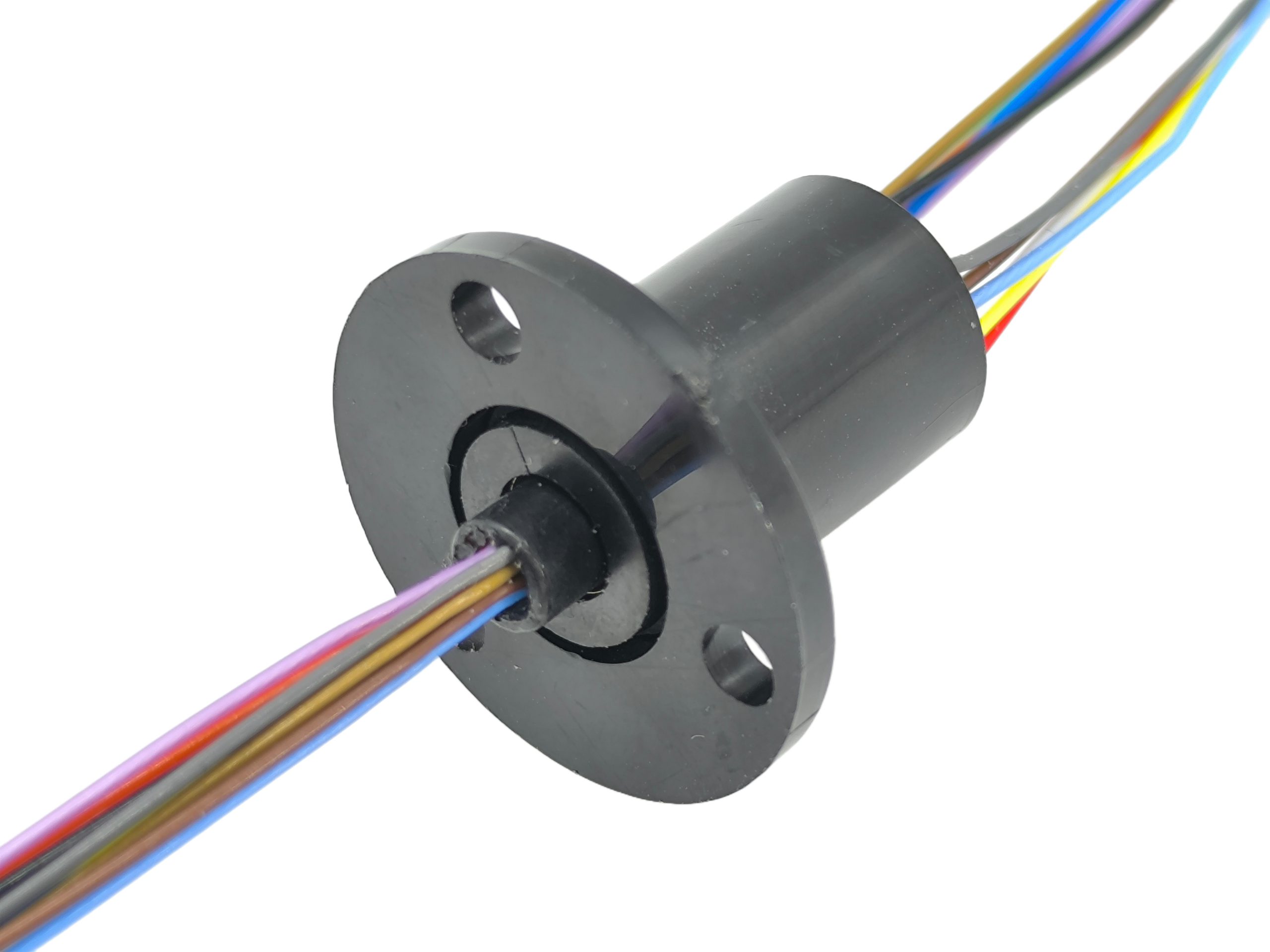

BRFM012A1-12-12-12S slip ring connector
| Electrical category | power | electrical contact material | precious metals |
| shell material | engineering plastics | ||
| Rated voltage | 240VDC/10A | operating speed | 0-250rpm |
| Insulation strength | 500VDC@50Hz.60s | temperature range | -20℃—+80℃ |
| Insulation resistance | ≥500mΩ/500VDC | protection level | IP51 |
| Dynamic contact resistance fluctuation value | ≤10mΩ | other requirements | Voltage resistance：1800VAC@50Hz.5s,≤10mA |
