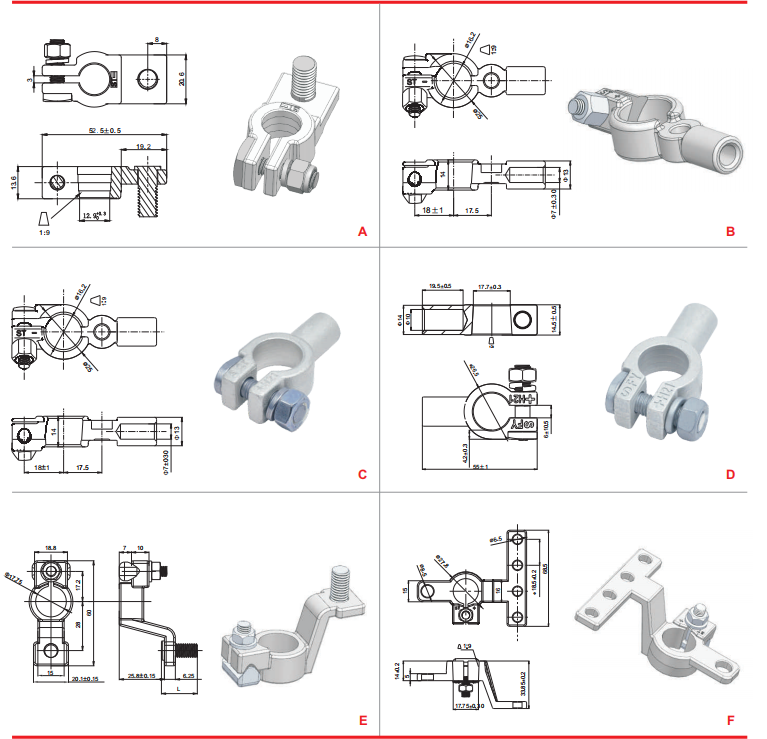

| Fig | Type | Material | Surface treatment | Applicablewire (mm²) | Aperture mm | Minimum packing | Polarity |
| A | 41303NC2C | CW612N | Matt tin plating | φ130 | 150 | ||
| B | ST135148A-D7 | CW612N | Matt tin plating | 25 | φ16.2 | 100 | + |
| C | ST135169-50 | CW612N | Matt tin plating | 50 | φ16.2 | 100 | + |
| D | ST135171-50 | CW612N | Matt tin plating | 50 | φ17.7 | 100 | + |
| E | ST135173 | CW612N | Matt tin plating | / | φ17.7 | 100 | + |
| F | ST135174 | CW612N | Matt tin plating | / | 中17.7 | 100 | + |
